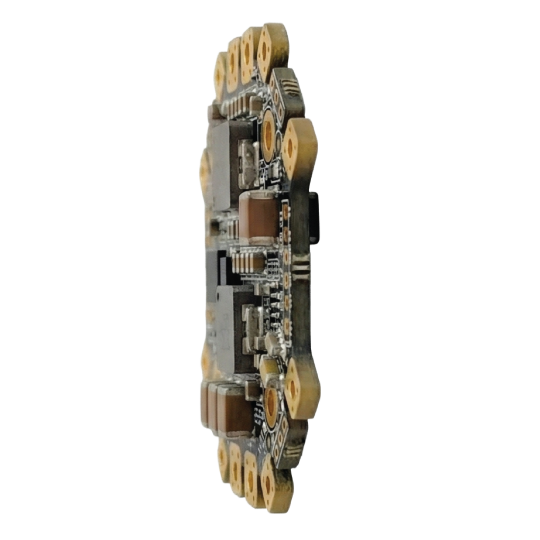

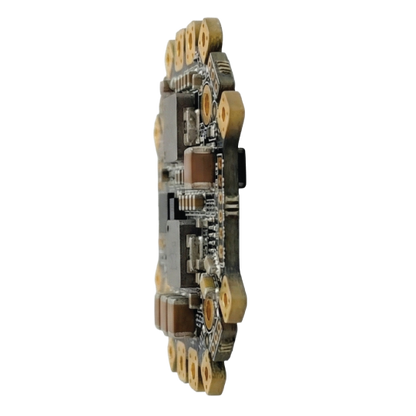

SKYBIT™ PDB500x
Rs. 12,000.00

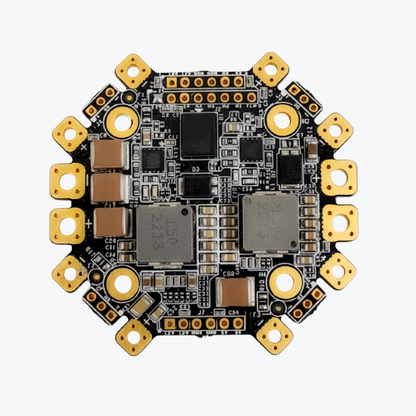

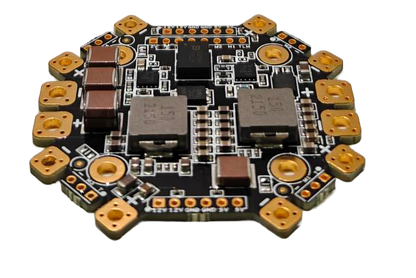

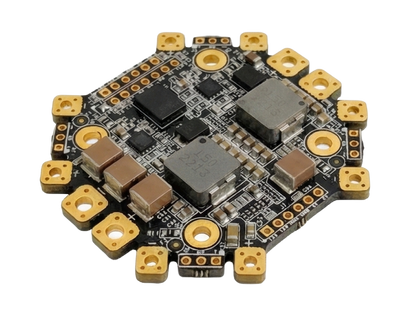

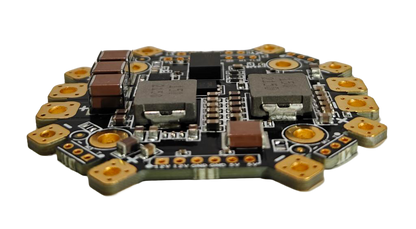

The PDB500x is a high-performance power distribution board engineered for demanding drone applications. It delivers exceptional current handling capability and thermal management, supporting up to 125A continuous current per ESC leg with minimal heat generation.
In stock, ready to ship
Couldn't load pickup availability
Pickup available at Skybit™, Pimpri
Usually ready in 24 hoursPairs well with
Made in India
12 Months Warranty
In stock! Ships within 1-2 business days.
SKYBIT™ PDB500x
Rs. 12,000.00
Product details
Specifications
- Input Voltage : 12V-60V (4-14S)
- Maximum Current (A) : 500
- Operating Temperature : -20 to +85 Degree Celsius
- 24V @ 125 A : 4 Output
- 12V @ 5A : 5A Total Across 5 Outputs
- 5V @ 5A : 5A Total Across 5 Outputs
- Mounting Hole Spacing (mm) : 30.5 X 30.5
- Dimensions (mm) : 58 X 58
- Weight (without cables) (g) : 24
Warranty
SKYBIT™ drone components come with a 12-month limited warranty from the date of purchase, covering defects in materials under normal use as specified in User manual of the products. If your product experiences a manufacturing defect, we'll repair or replace it at no charge . To make a claim, simply contact our support team at techsupport@skybit.co.in with your proof of purchase and product details. Please note that the warranty doesn't cover damage from misuse, unauthorized modifications, accidents, or normal wear and tear. All SKYBIT™ products are designed and manufactured in India with rigorous quality standards, and we stand behind our craftsmanship with local support you can trust.
Other Information
Country Of Origin : India
Brand : Skybit™
Manufactured By : Griffyn AI Labs Pvt. Ltd.
Address : Unit No. 4, Shewale Center – B, Survey No. CTS4691, MIDC, Pimpri Colony, Pimpri Chinchwad, Maharashtra – 411019
Mobile Number : +91-9028654684
Mail : techsupport@skybit.co.in
For any query or complaint, you can call or email the above details.
FAQs
What is the SKYBIT™ PDB500X and its main application?
The SKYBIT™ PDB500X is a high-performance power distribution board designed for high-voltage, high-current drone setups, capable of handling demanding electrical and thermal loads in UAV and robotics applications.
What input voltage range does SKYBIT PDB500X support?
It supports 4S to 12S LiPo batteries (up to 60V), making it suitable for a wide variety of performance drone systems.
What is the maximum continuous current rating?
The SKYBIT™ PDB500X can support up to 125A continuous current per ESC leg, ensuring robust power delivery for large motors or multiple propulsion systems.
Does the board provide onboard voltage regulation?
Yes, the SKYBIT™ PDB500X integrates both a 12V 5A and a 5V 5A switching regulator to power flight controllers, FPV equipment, or other onboard electronics.
What protection features are included in the SKYBIT™ PDB500X?
It features overcurrent and short circuit protection on both the 5V and 12V rails, plus surge protection and thermal relief.
What are the board’s physical mounting and thermal characteristics?
The board features 30.5 x 30.5mm mounting holes and measures 58 x 58mm. It uses high-performance dielectric glass fiber for continuous operation up to 180°C and weighs 24g.
Are there any special design features for installation and reliability?
Yes, it has extended thermal relief solder tabs for easier soldering and better heat dissipation; double-sided main power pads provide flexibility in high-current soldering connections (bolting not recommended for max currents).
Where is SKYBIT™ PDB500X designed and manufactured?
SKYBIT™ PDB500X is designed and manufactured in India.
What peripherals or loads can be safely powered from the SKYBIT™ PDB500X regulators?
You can power flight controllers, cameras, radio receivers, and other typical drone electronics directly from the 12V 5A or 5V 5A regulated outputs, within their specified ratings and total combined output limits.
