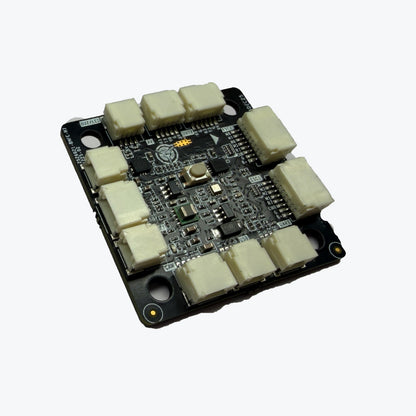

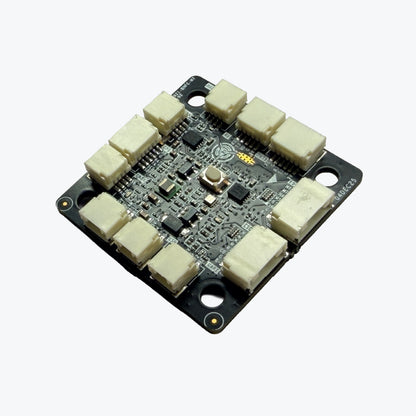

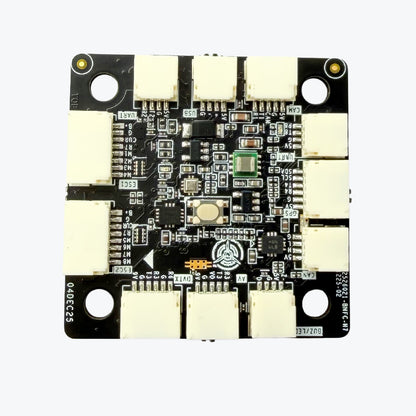

SKYBIT™ FC-H7-V2
The SKYBIT™ FC-H7-V2 is a compact and high-performance flight controller designed for FPV and micro UAV platforms. Engineered to deliver advanced control capability in a space-efficient design, it provides a reliable foundation for modern drone systems.
Fully compatible with ArduPilot firmware, the FC-H7-V2 enables seamless system integration, ensuring reliable flight management and responsive control. Its streamlined design helps optimize efficiency without compromising on performance.
Sold out
Pairs well with
Made in India
12 Months Warranty
Product details
Specifications

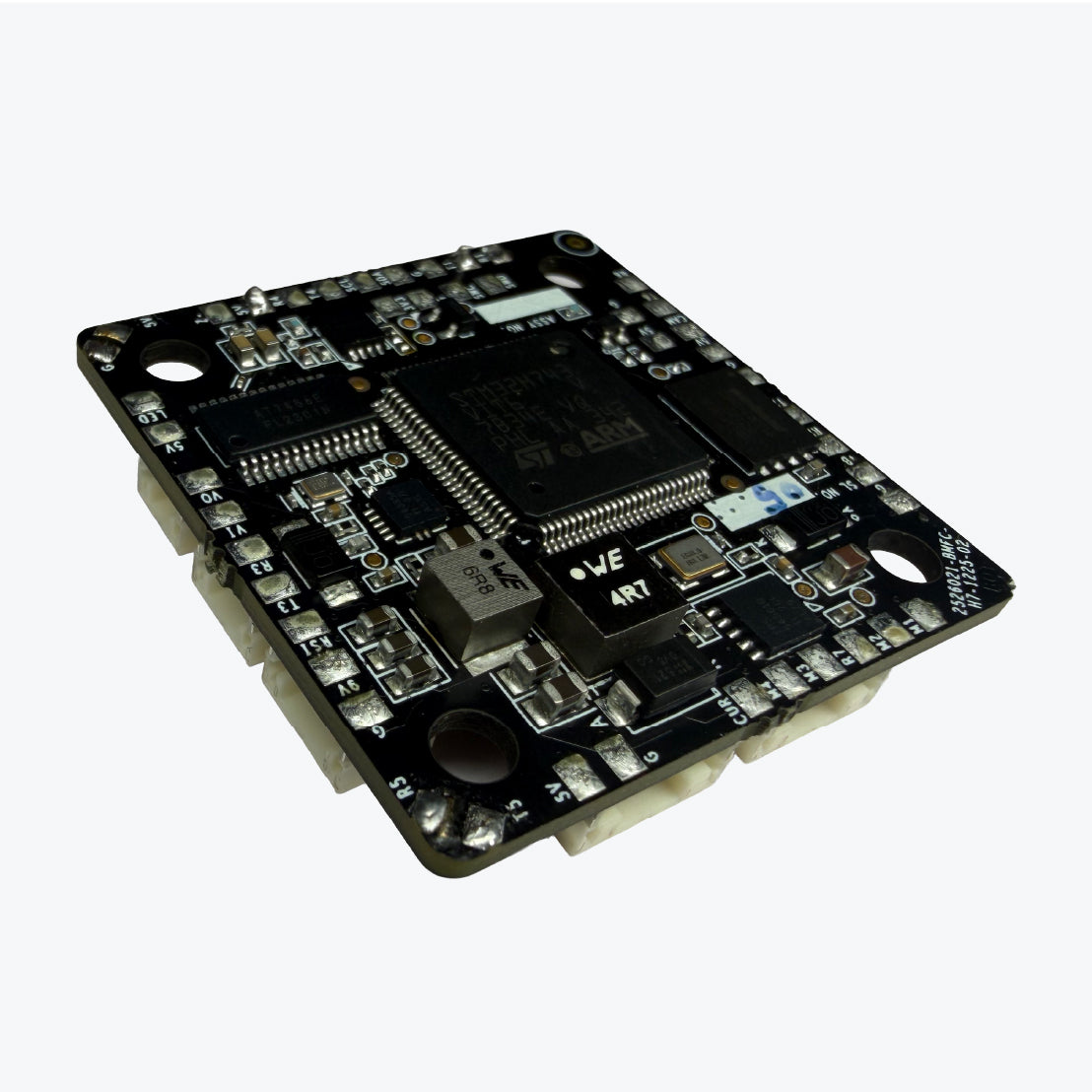

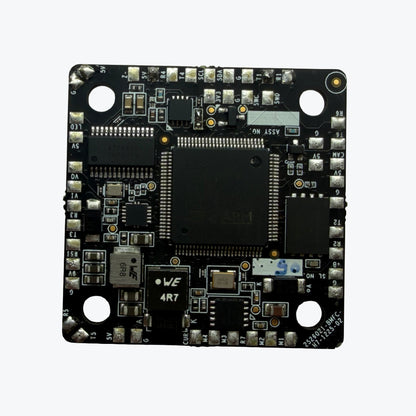

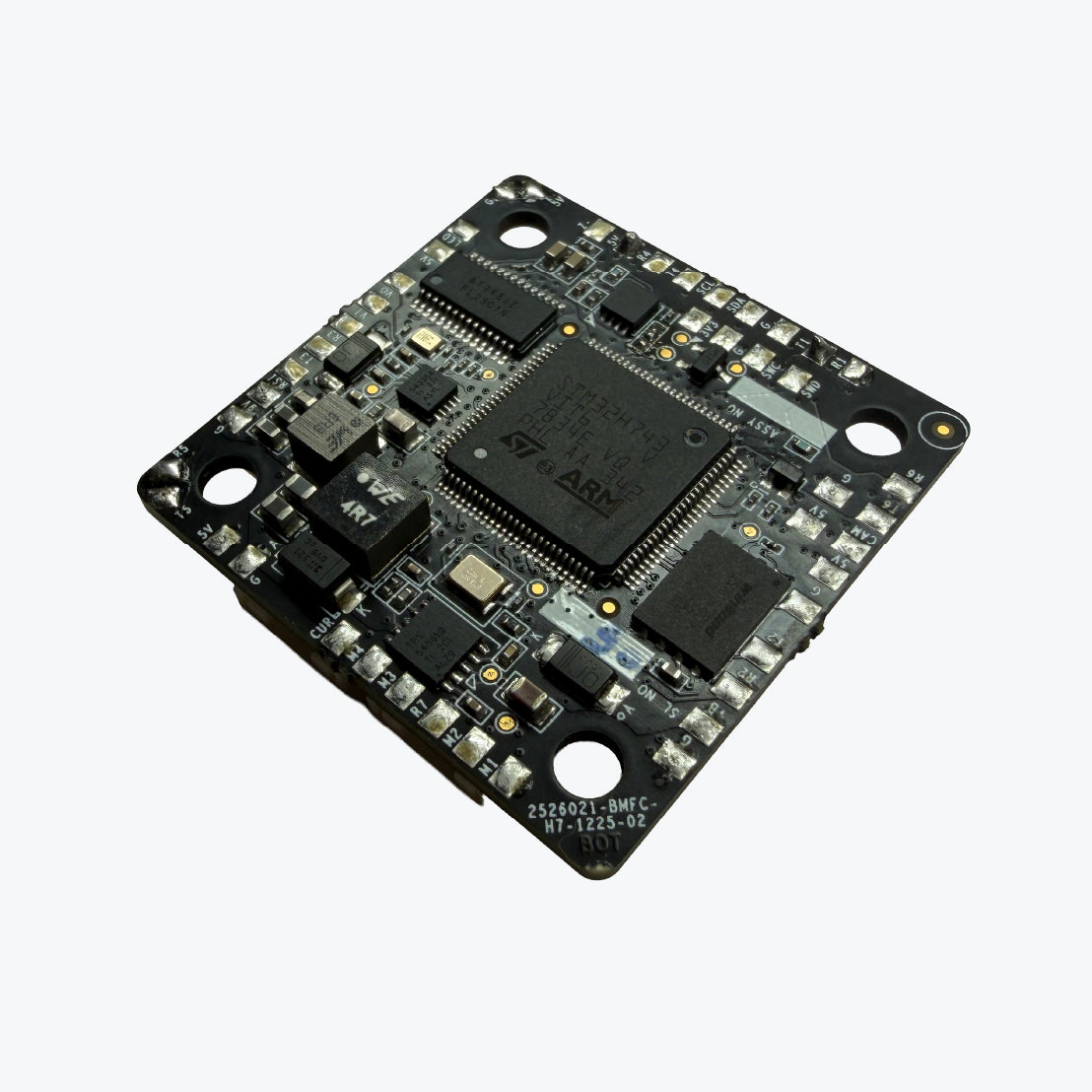

- MCU : STM32H743 32-bit processor running at 480 MHz
- Mechanical Reinforcement : Professional underfill epoxy for mechanical reinforcement
- UARTs : 8 (1,2,3,4,5,6,8) UART 7 RX only
- PWM Outputs : 9× PWM outputs (8 motor outputs + 1 LED)
- ESC Ports : 2× JST-SH 1.0 8-pin ESC ports (4-in-1 ESCs, x8/Octocopter compatible)
- VTX Port : 1× VTX port — JST-SH 1.0 4-pin (for HD systems like Caddx Vista / Air Unit / other VTX)
- Battery Input Voltage : 3S – 8S
- BEC : BEC 5V 2A (continuous), 9V 3A (continuous)
- USB : JST Connector
- Mounting : 30.5 × 30.5 mm with Ø4 mm holes using Ø3 mm grommets
- Dimensions (mm) : 40 × 40 mm
- Weight (gm) :11g
Warranty
SKYBIT™ drone components come with a 12-month limited warranty from the date of purchase, covering defects in materials under normal use as specified in User manual of the products. If your product experiences a manufacturing defect, we'll repair or replace it at no charge . To make a claim, simply contact our support team at techsupport@skybit.co.in with your proof of purchase and product details. Please note that the warranty doesn't cover damage from misuse, unauthorized modifications, accidents, or normal wear and tear. All SKYBIT™ products are designed and manufactured in India with rigorous quality standards, and we stand behind our craftsmanship with local support you can trust.
Other Information
Country Of Origin : India
Brand : Skybit™
Manufactured By : Griffyn AI Labs Pvt. Ltd.
Address : Unit No. 4, Shewale Center – B, Survey No. CTS4691, MIDC, Pimpri Colony, Pimpri Chinchwad, Maharashtra – 411019
Mobile Number : +91-9028654684
Mail : techsupport@skybit.co.in
For any query or complaint, you can call or email the above details.
FAQs
What processor does the Skybit™ FC H7-V2 use?
It features the STM32H743 32 -bit processor running at 480 MHz, delivering high processing power for advanced flight control and telemetry tasks.
Which IMUs and sensors are onboard the Skybit™ FC-H7-V2?
It uses the Dual IMU for accurate motion sensing.
What is the battery input voltage range?
Supports 3S to 8S LiPo batteries, corresponding to approximately 7V to 42V, allowing use with a wide range of power setups.
How many UART ports are available and what are their functions?
The FC-H7-V2 features 8 UART interfaces (UART1, UART2, UART3, UART4, UART5, UART6, and UART8), providing flexible connectivity for a wide range of drone peripherals and system integrations.
What ESC configurations does the Skybit™ FC-H7-V2 support?
Dual JST-SH 1.0 8-pin ports allow plug-and play connection of 4in1 ESCs supporting up to octocopter (8 motors) configurations. This simplifies wiring and assembly.
What data logging capabilities does it offer?
Equipped with 128MB flash memory for extensive Blackbox logging for flight data analysis and troubleshooting.
What flight control firmware platforms are compatible?
Currently Supports Ardupilot firmware only.
Physical dimensions and additional features?
40×40- mm with Ø4mm holes using Ø3mm grommets, weighs around 8 grams and dimension 39 ×39 mm.
Is FC-H7-V2 compatible for surveillance drones?
Yes, ideal for multirotor drones such as quadcopters, hexacopters, and octocopters, as well as fixed-wing UAVs and hybrid VTOL platforms. FPV racing drones that benefit from its low-latency control and integrated Bluetooth (Betaflight) tuning.
