SKYBIT™ Jetson Carrier Pro

Name: SKYBIT™ Jetson Carrier Pro
Brand: Skybit™ Drone Components
Price: 30500.00 INR
Availability: InStock

Rs. 30,500.00

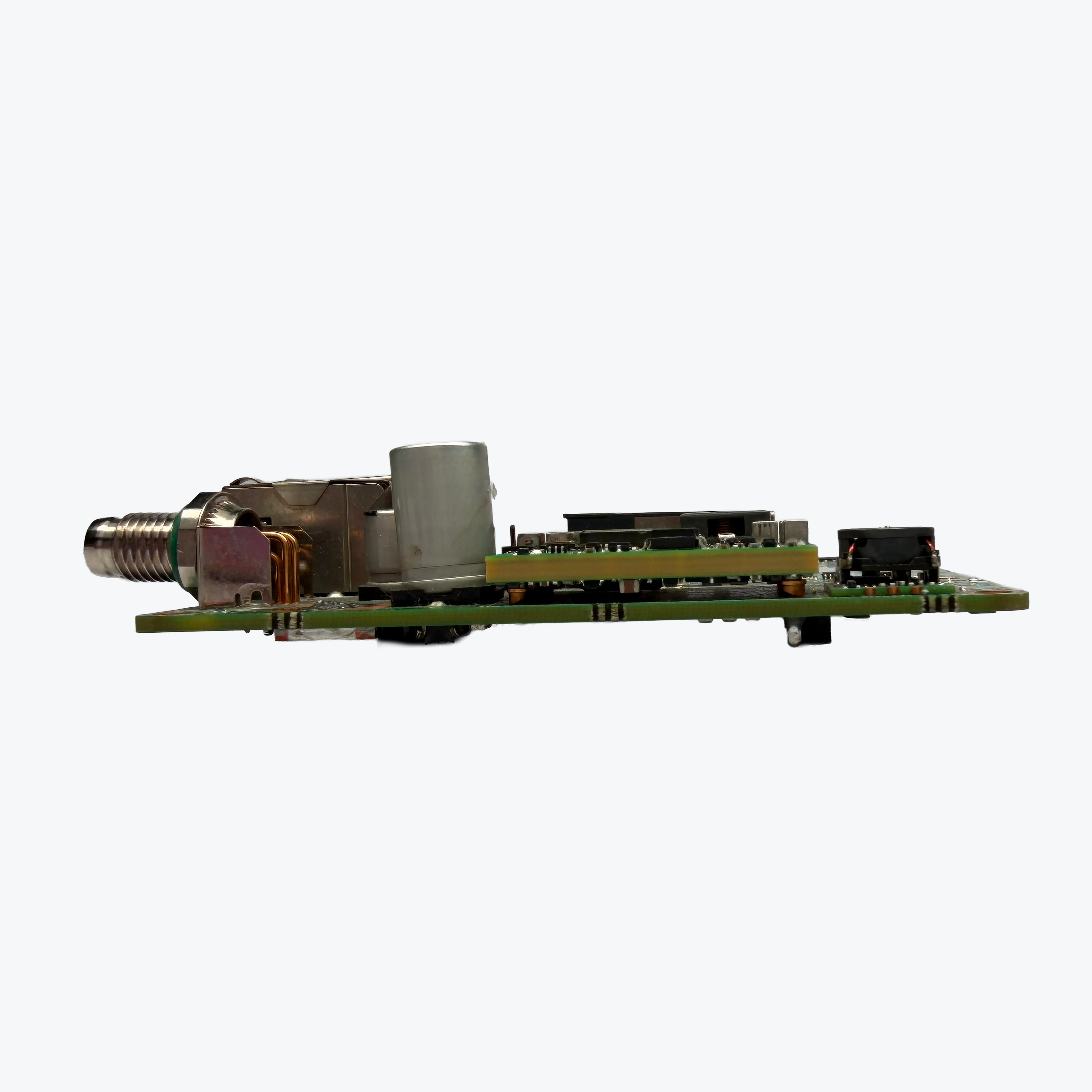

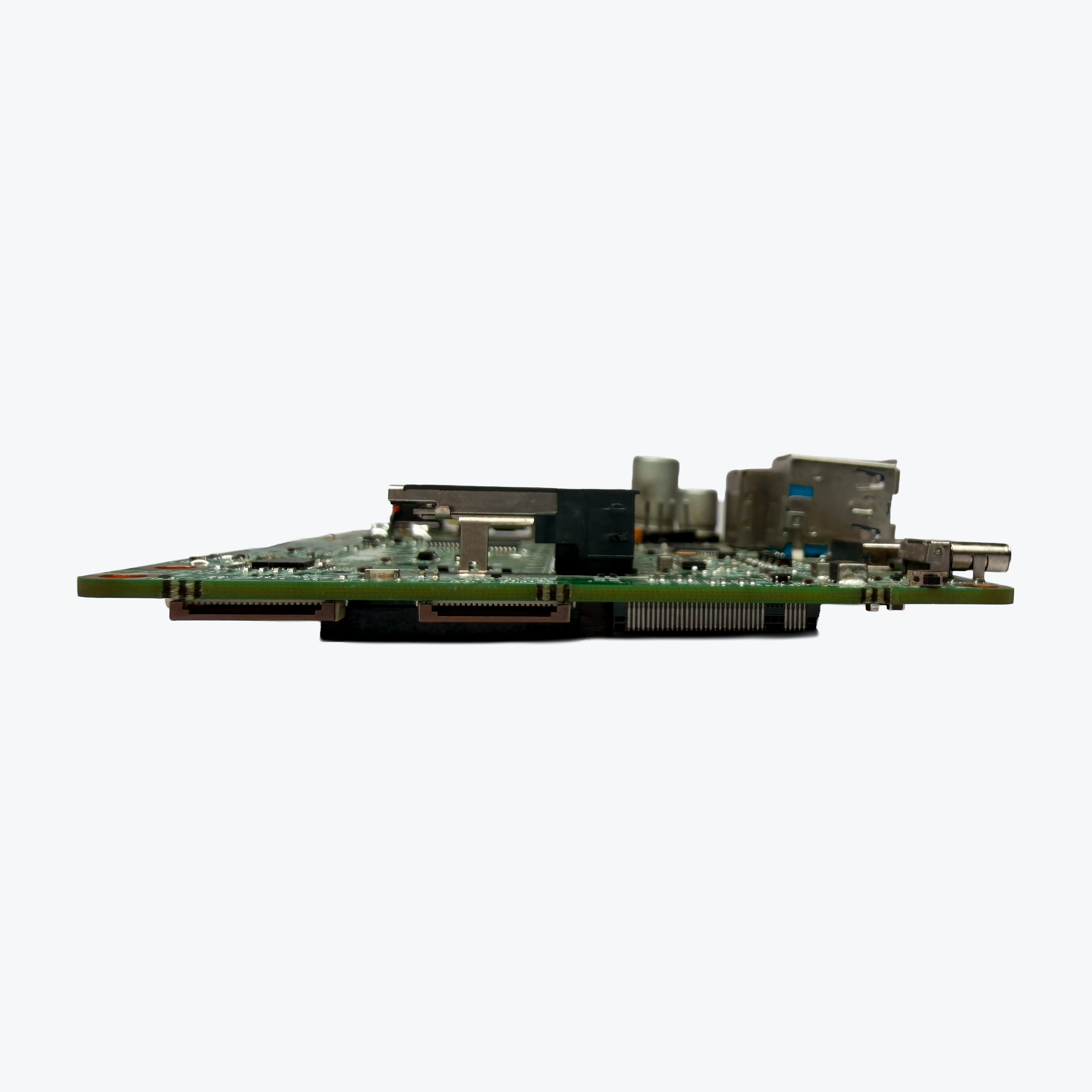

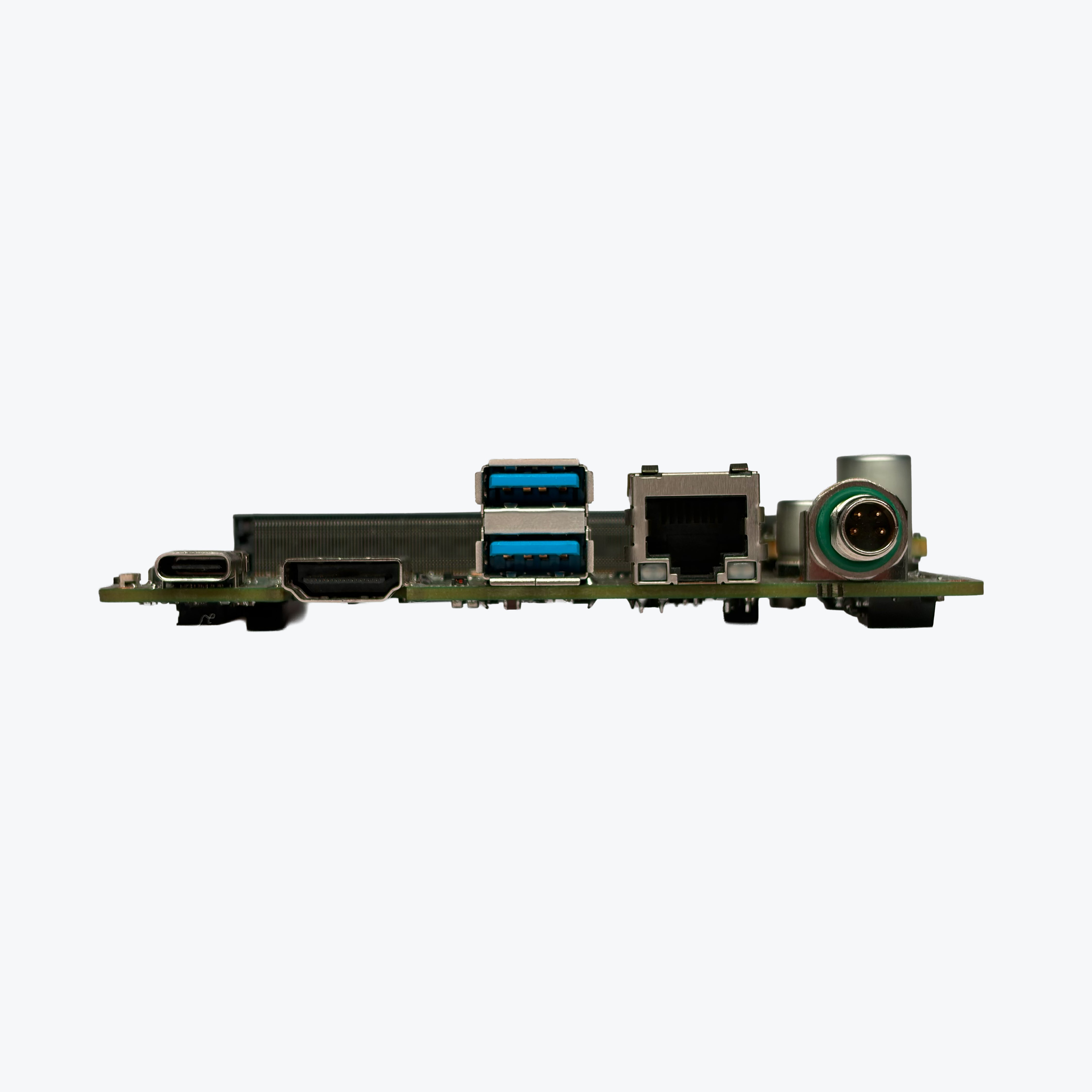

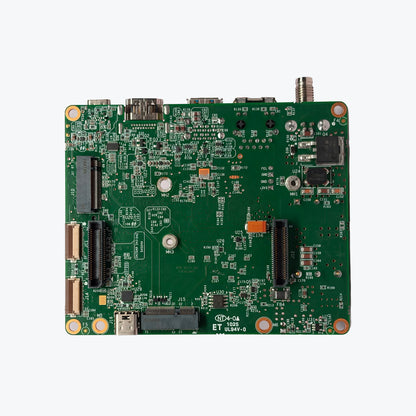

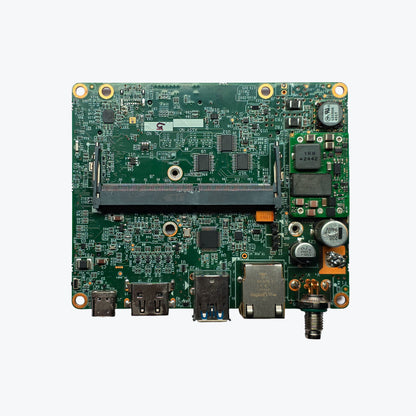

Engineered for powerful edge AI performance, this custom-designed carrier board provides a compact and reliable platform for NVIDIA Jetson Orin Nano, Jetson Orin NX, and Jetson Xavier NX System-on-Modules. Built to support next-generation intelligent systems, it enables seamless deployment across robotics, industrial automation, automotive technology, and smart surveillance.

Optimized to unlock the full potential of Jetson platforms from NVIDIA, the board combines efficient power architecture, high-speed connectivity, and strong peripheral support—delivering the stability and performance required for demanding AI-driven applications.

Product variants

In stock, ready to ship

Pickup available at Skybit™, Pimpri

Usually ready in 24 hours

Pairs well with

Made in India

12 Months Warranty

In stock! Ships within 1-2 business days.

SKYBIT™ Jetson Carrier Pro

Rs. 30,500.00

Product details

Specifications

Supported NVIDIA SOMs : Xavier NX 8GB / 16GB (6 TFLOPS), Orin Nano 4GB/ 8GB (upto67 TOPS), Orin NX 8GB / 16GB (upto100T TOPS)
Maximum RAM supported : 16GB, 128-bit LPDDR5, 104.2 GB/s
Storage : 1 x M.2 (key M) SSD 2230 / 2280
USB : 2 x USB 3.2, 1 x USB 3.2 Type C
Networking / Ethernet : 1 x GigE, 1 X M.2 Key E for Wi-Fi / Bluetooth Module
Flashing port Flashing port / USB type C 10G : Flashing port / USB type C 10G
Debug port : 1 x type C US B debug port
CSI ports : 2 x 4 lane CSI
Display : HDMI
Multifactional Port : Stackable board mount expansion connector (mating connector ERM8-025-05.0-S-DV-K-TR (Recommended)
2 x SPI, 1 x I2S, 1 x CAN, 2 x I2C, 6 x GPIO, 2 x UART,
2 x 4 lane CSI (optional)
Input voltage : 18 V to 75 V (On board EMI/EMC filter)
RTC : RTC header (supports rechargeable ML1220 )
FAN : 1 X 4 Pin Fan Connector (5V PWM)
Operating temperature : -40 °C to 80 °C
Dimension : 110 mm x 90 mm
