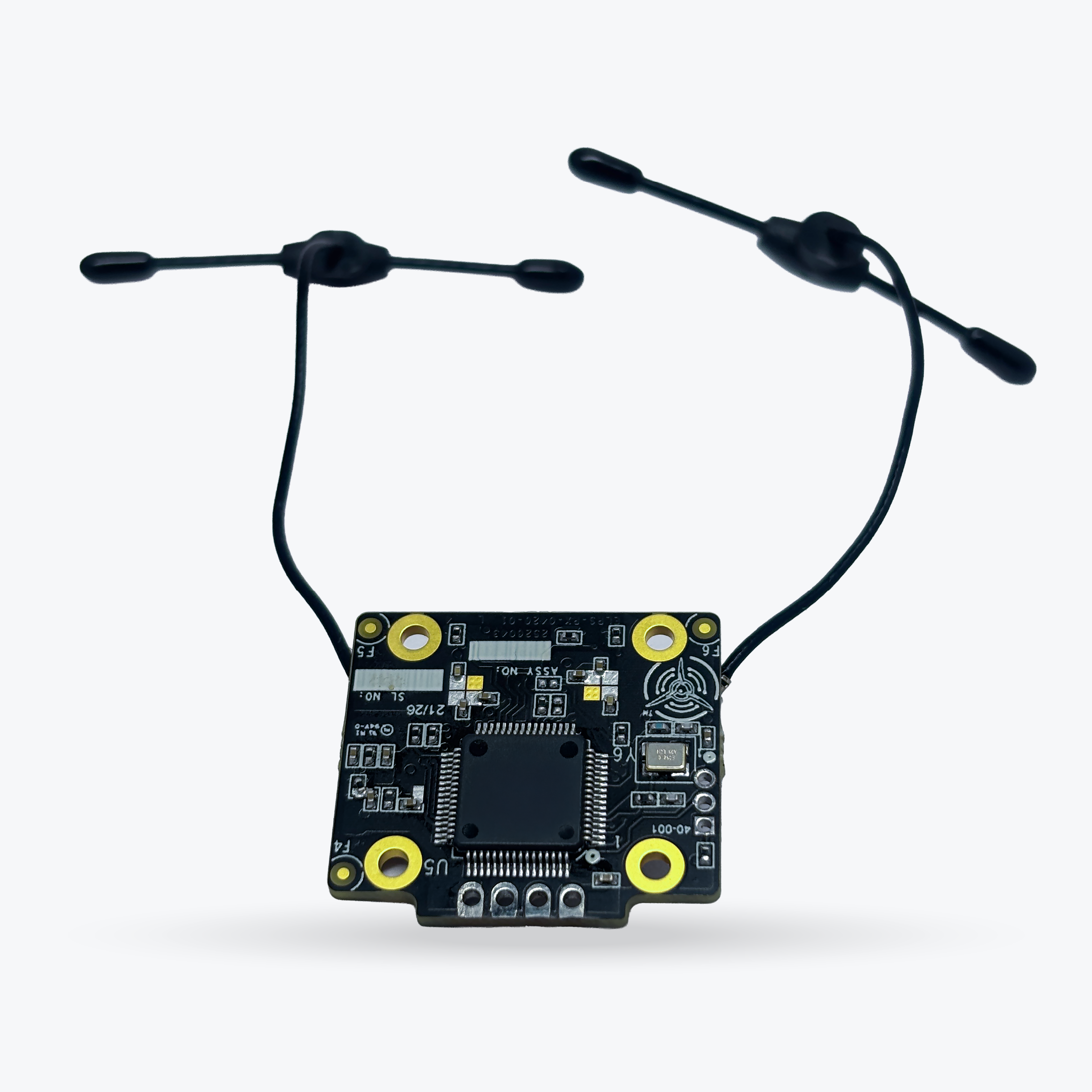

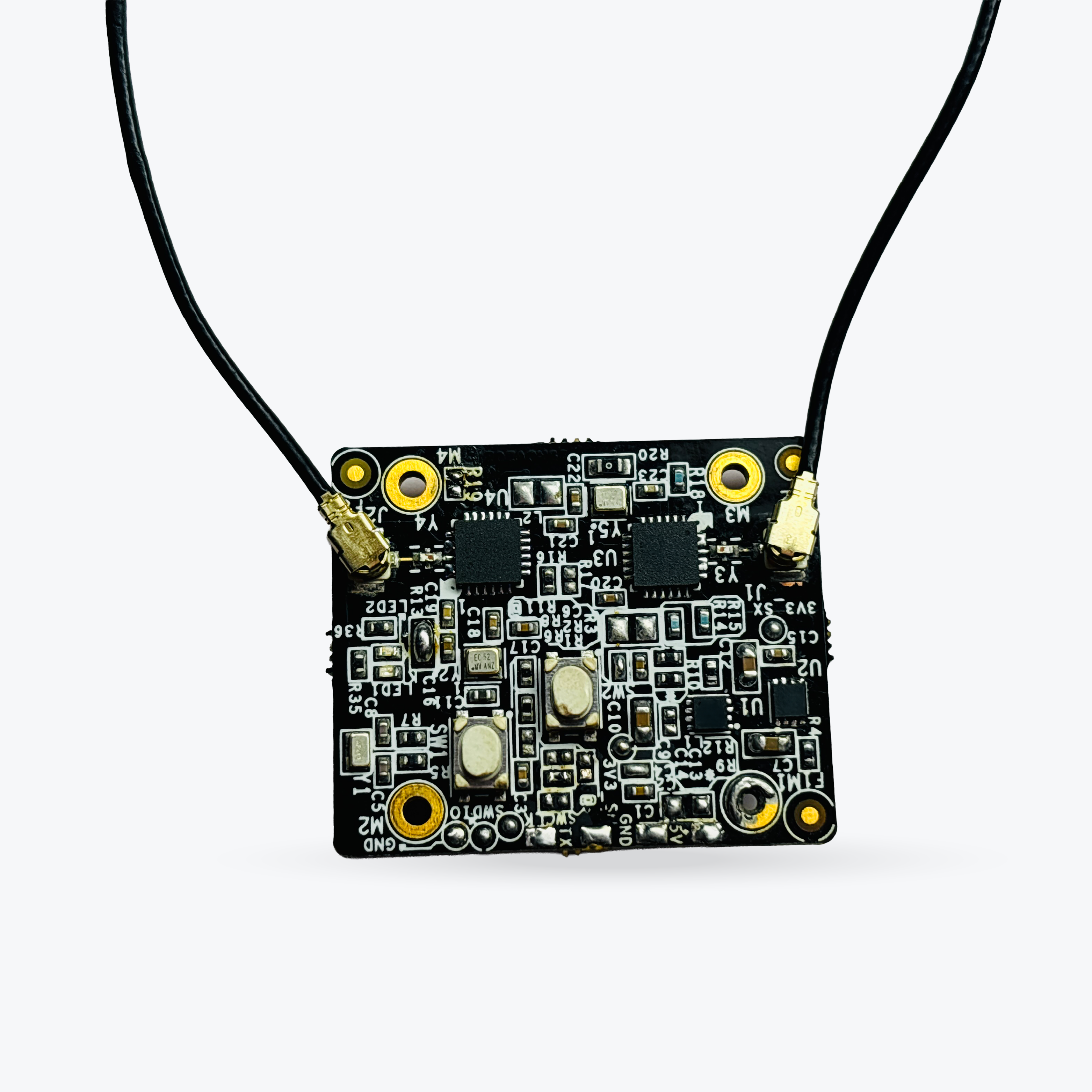

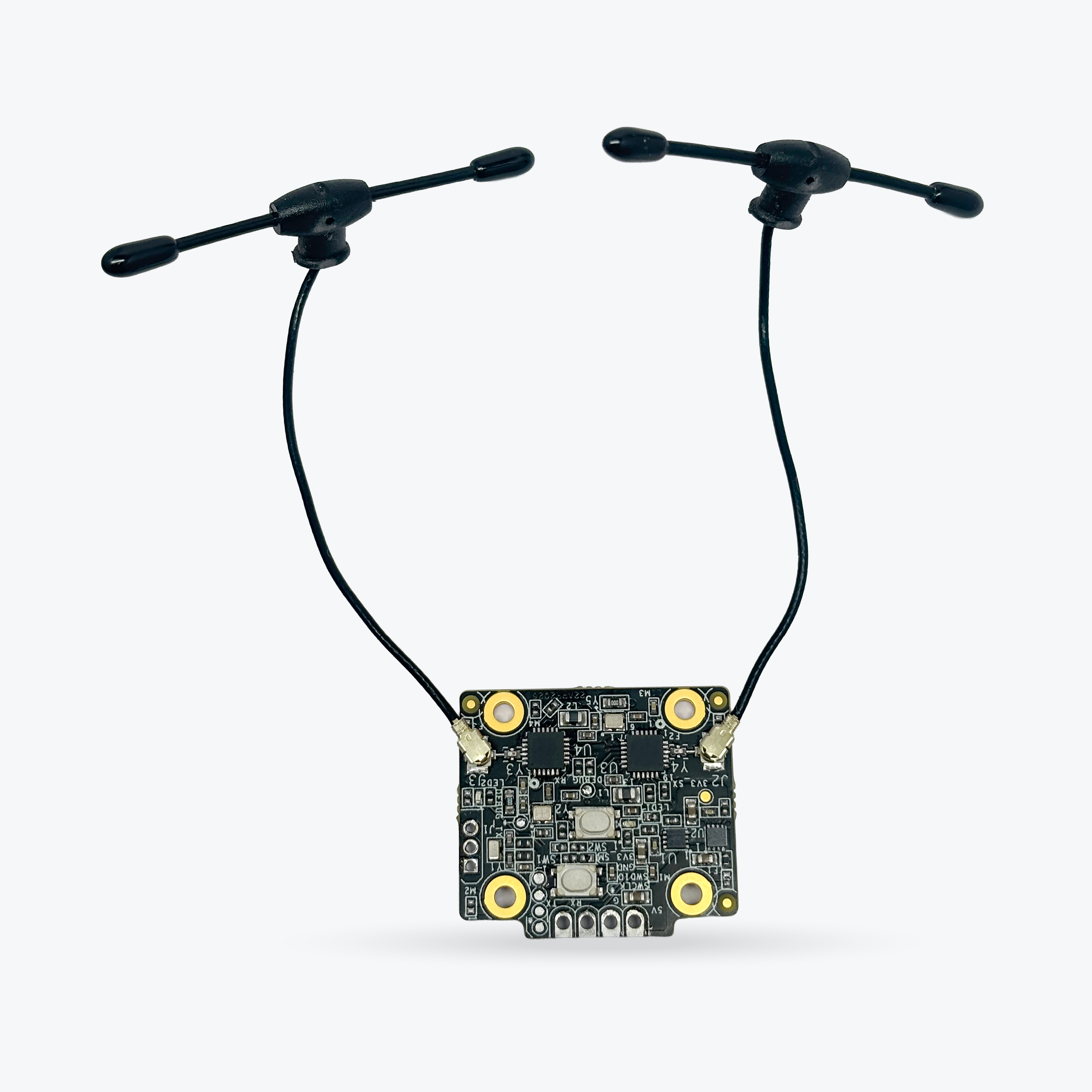

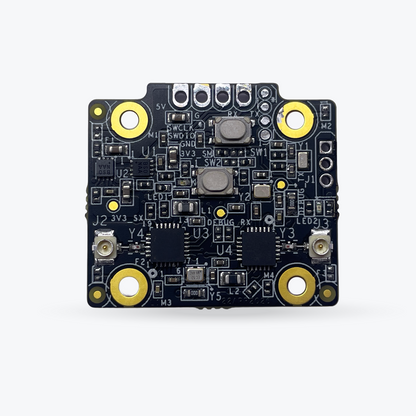

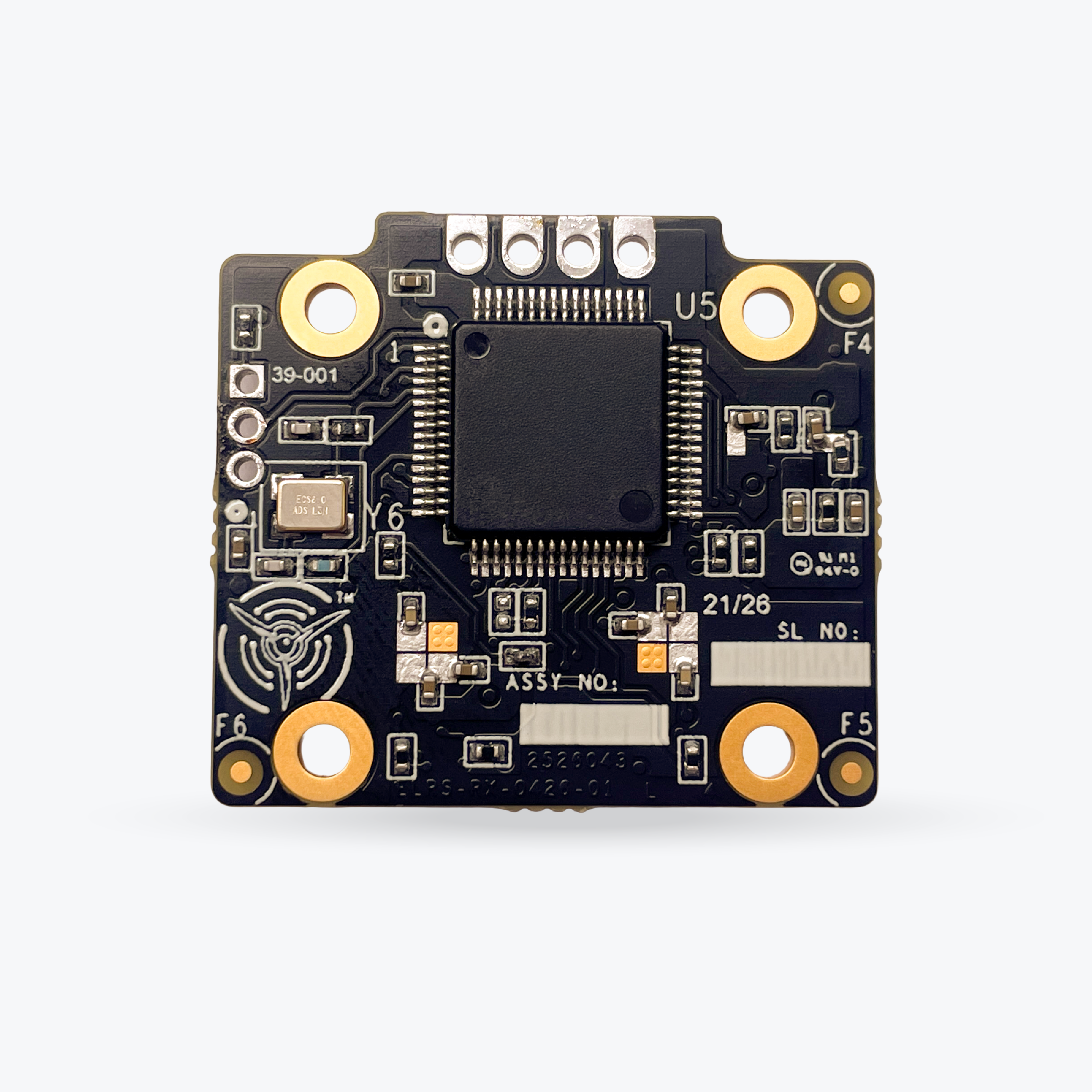

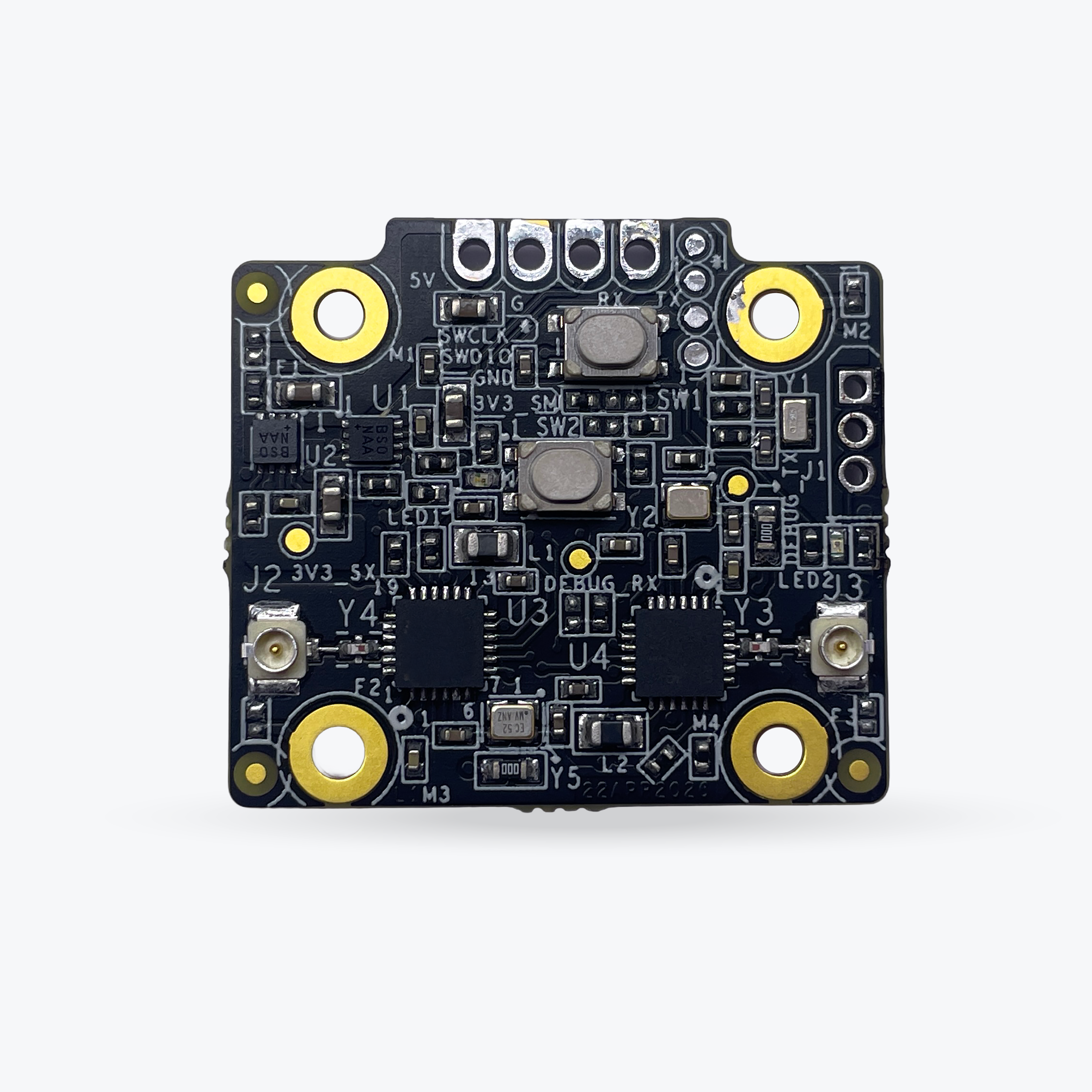

Sky-LRS RX
The SKY-LRS RX - True Diversity is a high-performance Express ELRS receiver engineered for reliable, low-latency wireless communication in demanding drone and unmanned system applications. Built around an advanced STM32 MCU, it delivers responsive control, stable connectivity, and precise command transmission for safe and efficient operations.
Designed for long-range performance, the SKY-LRS RX supports MAVLink and CRSF protocols for seamless integration with modern flight controllers and autonomous platforms. Its True Diversity architecture enhances link reliability and interference resistance, while support for high packet rates ensures consistent connectivity, rapid response, and dependable control in mission-critical environments.
Pairs well with

Made in India
12 Months Warranty
Product details
Specifications
MCU : STM32 Core
Receiver Interface :
- Protocol: MAVLINK/CRSF
- True Diversity: Yes
- Modulation: LoRa, FLRSC
- Operating Bands: 2.4 GHz (High refresh, low latency)
- Frequency:2.4 GHz
- Range:Up to8km
- Communication: CRSF, S-Bus
- Antenna: IPEX/U.FL or Ceramic Antenna (model dependent)
Supported Telemetry :
- RSSI, LQ, SNR•Mavlink
- Downlink/Uplink packet rate
- Full CRSF telemetry
Electrical :
- Input Voltage: 5 V
- Power Consumption: 60–120 mA (typ.)
- Telemetry RF Power: 10mW
- Working Temperature: –10°C to +60°C
- Firmware Update: Pre-installed
- Weight: 3gm
- Board Dimensions: 30mm x 27mm
